Photo 1 of 7

Professional documentation

Published files and resources to request when preparing a quote, specification or installation.

A screening solution designed for fencing professionals

The woven kit enables landscapers, fencing installers, distributors and outdoor development professionals to offer a durable and attractive screening solution for rigid panels.

Who is it for?

  • Landscapers

    Enhance your landscaping projects with attractive, durable screening that is easy to integrate.

  • Fencing installers

    Offer a solution suited to rigid panels, with a woven installation designed for lasting results.

  • Building material merchants / distributors

    Expand your range with a professional kit ready to offer, compatible with the main rigid panel brands.

Installation advice

A woven installation that holds every slat in place and supports long-lasting fencing projects.

  1. Rigid panel
  2. Insert the slat
  3. Weave through every wire
  4. Finishing profile
  • Installation is recommended on panels with a horizontal wire of at least 5 mm.
  • Slats must be woven through every horizontal wire in accordance with the instructions.
  • Recommended post embedment depths:
Recommended embedment depths by fence height
Fence height above ground1m031m231m531m731m93
Embedment depth400 mm400 mm600 mm700 mm800 mm
Hole diameter300 mm300 mm350 mm350 mm400 mm

A range designed for your projects

Choose the configuration suited to your project from five heights and three colour combinations.

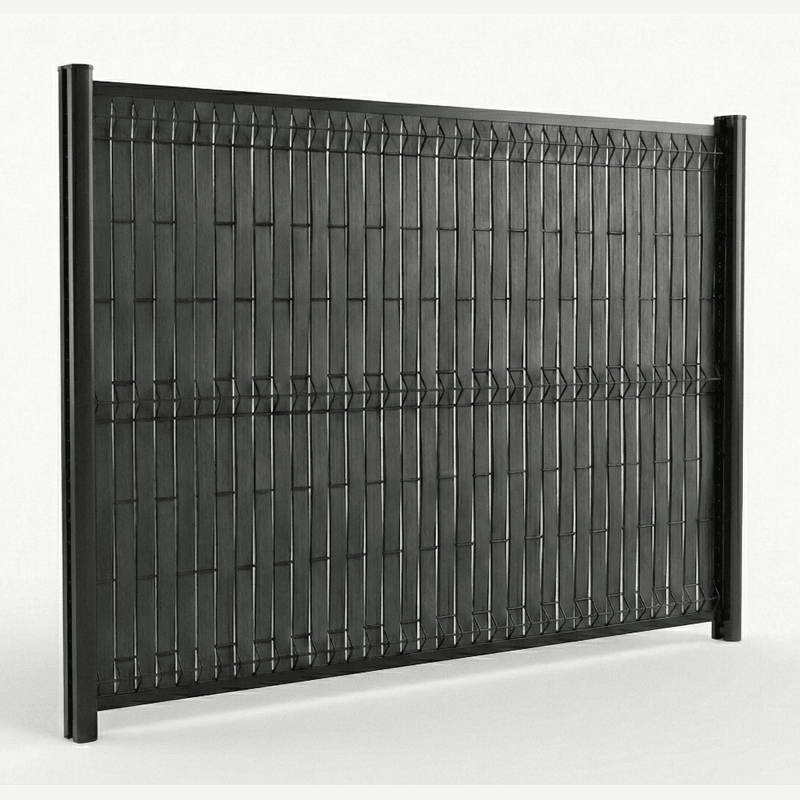

View of the privacy kit in Anthracite grey
Slats EC 102
Anthracite grey
Profiles RAL 7016
Anthracite grey

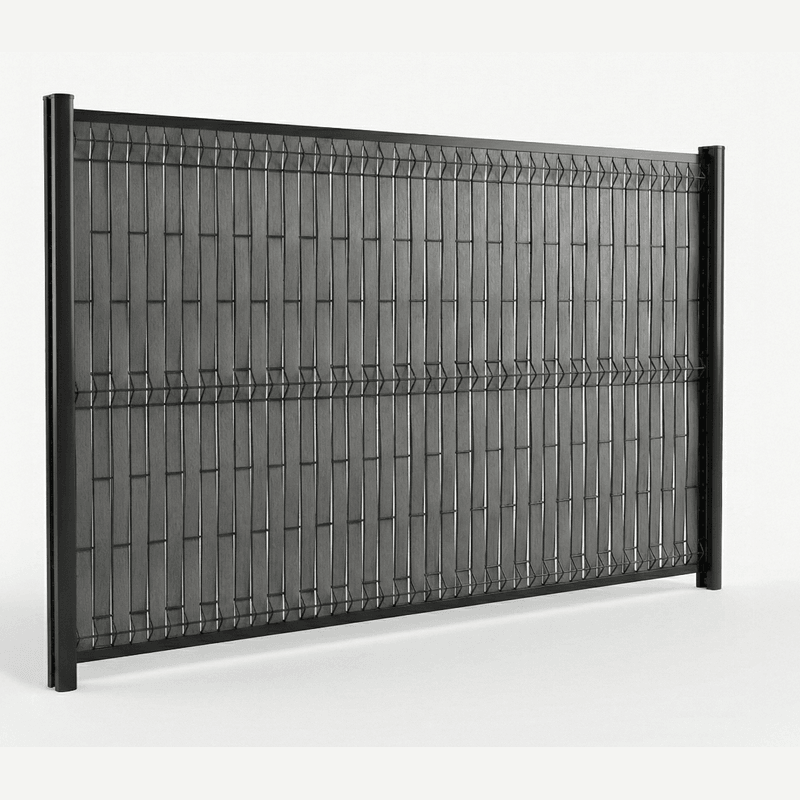

View of the privacy kit in Light grey
Slats EC 103
Light grey
Profiles RAL 7016
Anthracite grey

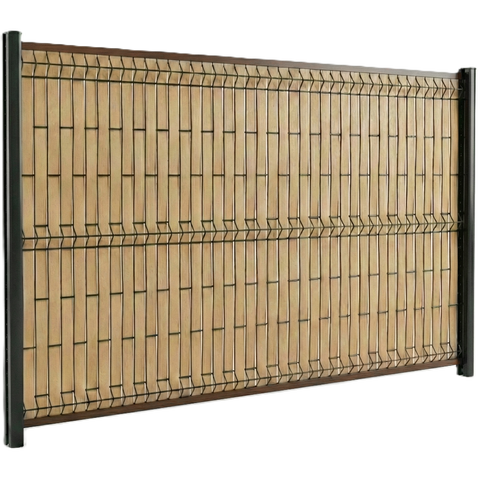

View of the privacy kit in Light brown
Slats EC 401
Light brown
Profiles RAL 8008
Olive brown

Available heights

  • 1,03 m
  • 1,23 m
  • 1,53 m
  • 1,73 m
  • 1,93 m

Project support tailored to every site, from technical validation through installation.

Ask for advice

Check your panel compatibility

Select your panel details for an initial compatibility check.

To be confirmed

This configuration must be validated by our team before installation.

View compatible panels

Carton composition · Ready-to-install kit

Components per 2.50 m panel

45-mesh panel

Panel length: 2.50 m
  • Illustration of the Internal slats component for the 45-mesh panel

    Internal slats ×43

    Width 49 mm

  • Illustration of the External slats component for the 45-mesh panel

    External slats ×2

    Width 40 mm

  • Illustration of the Reinforcement fold profiles component for the 45-mesh panel

    Reinforcement fold profiles ×4-6

    Length 1240 mm

  • Illustration of the Top finishing profiles component for the 45-mesh panel

    Top finishing profiles ×2

    Length 1240 mm

50-mesh panel

Panel length: 2.50 m
  • Illustration of the Internal slats component for the 50-mesh panel

    Internal slats ×48

    Width 43 mm

  • Illustration of the External slats component for the 50-mesh panel

    External slats ×2

    Width 30 mm

  • Illustration of the Reinforcement fold profiles component for the 50-mesh panel

    Reinforcement fold profiles ×4-6

    Length 1240 mm

  • Illustration of the Top finishing profiles component for the 50-mesh panel

    Top finishing profiles ×2

    Length 1230 mm

Why choose woven installation?

Homogeneous, durable and attractive screening designed for rigid panels.

  • Each slat held on every horizontal wire
  • Excellent wind resistance
  • Does not flap
  • Durable and attractive hold
  • Homogeneous screening

Compatible with the leading rigid panel brands on the market!

Our privacy kits are compatible with the leading French and European manufacturers of rigid wire panels: Dirickx, Delclo®, Clonor, Eurofence, Schertz, Place Clôtures, MRT, Betafence, Lippi, Rivisa, Clôture Arès, Heras, Tecnomallas, Cloostermans-Huwaert and Tréfilunion.

Logo Dirickx - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Dirickx
Logo Delclo® - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Delclo®
Logo Clonor - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Clonor
Logo Eurofence - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Eurofence
Logo Schertz - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Schertz
Logo Place Clôtures - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Place Clôtures
Logo MRT - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
MRT
Logo Betafence - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Betafence
Logo Lippi - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Lippi
Logo Rivisa - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Rivisa
Logo Clôture Arès - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Clôture Arès
Logo Heras - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Heras
Logo Tecnomallas - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Tecnomallas
Logo Cloostermans-Huwaert - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Cloostermans-Huwaert
Logo Tréfilunion - rigid welded panel compatible with the Redcinha® Delclo® privacy kit
Tréfilunion

Technical requirement: rigid welded mesh panels with a horizontal wire of 5 mm minimum.

Description

Composite privacy kit for rigid mesh panels and rigid fencing. The Redcinha® Delclo® system transforms your fence into a composite privacy screen. Since 2013, Redcinha® Delclo® has been developing PVC-free wood-composite screening solutions for professionals in fencing and outdoor landscaping.

The composite privacy slats, also called privacy laths or slats, are designed to be woven directly into the horizontal wires of rigid panels. This woven installation secures the slats evenly and helps the screening resist wind. The system provides up to 95% privacy while preserving the aesthetic of a composite fence.

Ready-to-install composite privacy kit

The kit is supplied in a "Ready to Install" carton with all elements required for installation: composite privacy slats and aluminium finishing profiles. It is available in several heights and colours to suit different privacy fencing projects, garden screening, outdoor partitions or landscape installations.

The slats are solid, mass-dyed and feature a brushed finish that closely resembles natural wood. The PVC-free wood composite is designed to withstand outdoor conditions: UV, frost, hail and humidity. The material is rot-proof and requires only limited maintenance.

Compatible with many rigid panels

This privacy slat kit for rigid mesh is compatible with the main folded rigid panels on the market, provided the horizontal wire is at least 5 mm. Slats must be woven on every horizontal wire of the panel to ensure secure retention.

For professionals, this composite privacy screen for rigid fencing is a durable solution to create an attractive screen, increase the privacy of an outdoor space and enhance an existing fence.

Technical prerequisite: folded rigid panel with horizontal wire of at least 5 mm.

Ready-to-install carton containing everything needed: slats and aluminium finishing profiles. Compatible with the main folded rigid panels on the market (horizontal wire min. 5 mm).

Our team's advice

Installation is strongly recommended on panels with a horizontal wire of at least 5 mm. Slats must be woven on every horizontal wire.

Key features

Up to 95% privacy
Wind-resistant (does not flap)
PVC-free composite designed for outdoor use (UV, frost, hail, rot-proof)
Solid slats with brushed effect and mass-dyed colour
Premium aluminium finishes
Anti-theft kit optional
Woven installation without tools

Technical specifications

Brand
Redcinha®Delclo®
Slat widthsSee carton composition
Slat thickness4 mm
Installation methodWoven installation. Two weaving directions possible (see instructions)
MaintenancePressure washer, minimum distance 1 m
CompatibilityMain folded rigid panels, horizontal wire min. 5 mm
Warranty10 years

Our compatible range

Associated accessories

Internal composite slats
External composite slats
Top aluminium profile
Bottom aluminium profiles
Anti-theft kit (optional)

Privacy screening for rigid fence panels

Bestseller

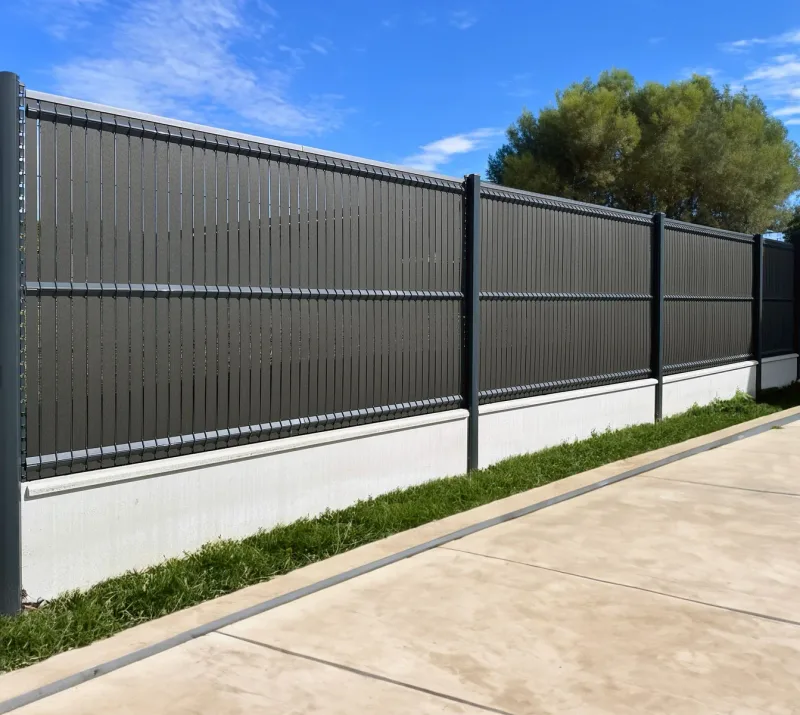

Ultimate® Privacy Kit - Straight Installation

Ultimate® Privacy Kit - Straight Installation

  • Installation in under 5 minutes
  • Tool-free installation thanks to factory pre-mounted inserts
  • Ready-to-install carton
PVC Privacy Kit - Straight Installation

PVC Privacy Kit - Straight Installation

  • High-quality PVC, anti-UV treated
  • Quick installation in approx. 9 minutes, straight mounting without clips or tools
  • Simple and intuitive system
Illustrative setting showing the 3D STYLE kit around a decking area

3D STYLE Slatted Privacy Screening Kit in Galvanised Steel

  • Slats made from galvanised steel with a coating on both faces and a 3D profile
  • One colour only: matt anthracite grey RAL 7016
  • Three heights: 1.23 m, 1.53 m and 1.73 m

FAQ

Not automatically. The Redcinha® Delclo® woven kit is documented for folded rigid panels 2.50 m long, in 45- or 50-mesh formats. The instructions specify a minimum horizontal wire diameter of 5 mm and strongly advise against panels with 4 mm wire.

The brand alone does not validate the configuration. Before ordering, record the panel reference, length, height, mesh count, folds and horizontal wire diameter. Also have the posts, fixings and anchors checked. For an unidentified panel or one outside these formats, have the measurements and photos reviewed before choosing the kit.

Check the number of meshes across the panel, its length and its reference: 45 meshes and 50 meshes refer here to two panel formats, not to mesh widths in millimetres. For a 2.50 m panel, the product sheet distinguishes:

  • 45 meshes: 43 internal slats, 49 mm wide, and 2 external slats, 40 mm wide;
  • 50 meshes: 48 internal slats, 43 mm wide, and 2 external slats, 30 mm wide.

The slats are 4 mm thick. Each carton also contains 2 top profiles and 2 bottom profiles in aluminium. If you are unsure about the existing panel, provide its reference, measurements and a photo before ordering rather than choosing on the basis of brand alone.

The kit should only be installed after the panel, posts, fixings and anchoring have been checked, because adding privacy screening increases wind load. The instructions discourage posts with base plates unless the base plate is welded directly to the post, as in the Delclo® configuration described. Even in that case, they recommend a maximum height of 1500 mm; above that, post embedment is mandatory, regardless of the support.

For the stated above-ground fence heights, the product sheet and instructions specify the following dimensions:

  • 1m03 and 1m23: 400 mm embedment depth, 300 mm hole diameter;
  • 1m53: 600 mm embedment depth, 350 mm hole diameter;
  • 1m73: 700 mm embedment depth, 350 mm hole diameter;
  • 1m93: 800 mm embedment depth, 400 mm hole diameter.

This table alone does not validate soil conditions, a low wall or an existing anchorage. Have the actual configuration and site exposure checked before installation.

On this Redcinha® Delclo® composite kit, the slats must be woven through every horizontal wire of the folded rigid panel. It is not the straight installation with self-supporting slats used for the Ultimate® kit: each product reference has its own product sheet and installation instructions.

The woven kit instructions offer two weaving directions suited to the panel height. They can create a uniform pattern or an alternating 1-1 or 2-2 pattern. At 1m73, follow the diagram that matches the actual mesh arrangement above and below the folds. Do not transfer compatibility conditions or instructions from a straight-installation kit to this woven kit.

The instructions do not support promising an installation without equipment or preparation. They specify personal protective equipment, including gloves, a mask and safety glasses, as well as a utility knife. The fencing work and any optional anti-theft accessory must be prepared separately.

The stated sequence is: fit the bottom profile, weave the slats, then fit the top profile. Installing the bottom profile before the panel is recommended. Place the external slats at the ends and weave the slats through every horizontal wire, following the diagram for the relevant height. If the slats have an orientation feature, chamfered corner or hole, depending on the version, position it at the bottom inside the lower profile. Consult the woven kit instructions in the technical documentation on this page before starting.

The product sheet includes the wording “does not flap in the wind”, but gives neither an allowable wind speed nor a test classification for the complete fence. This wording must not be treated as a guarantee under all exposure conditions or as evidence of superiority over another system.

The instructions require the slats to be woven through every horizontal wire and emphasise post embedment because of wind load. Stability also depends on the panel, the posts, their fixings, the substrate and the site. Have the whole assembly checked before installation; weaving cannot compensate for inadequate anchoring.

It is the anti-theft screw system offered as an optional extra in the woven kit product sheet. It complements the privacy screen but is not included in the standard carton contents.

Have the reference and installation method confirmed before ordering: the woven kit product sheet and instructions do not describe how it is installed. Therefore, do not promise that it can be installed without tools, that the slats cannot be removed, or that it protects against all theft.

The product sheet lists 5 heights, 1m03, 1m23, 1m53, 1m73 and 1m93, and 3 slat colours: anthracite grey EC 102, light grey EC 103 and light brown EC 401. This list does not confirm that every combination of height, mesh format and colour is in stock; have the combination confirmed when ordering.

The profiles paired with EC 102 and EC 103 slats are anthracite grey RAL 7016. For EC 401, the product sheet lists olive brown profiles RAL 8008 until stocks are exhausted, then beige brown RAL 1011. Do not assume the colour of the supplied profiles: have it specified for your order or for a fence extension.

Before installation, store the slats on a dry, flat surface, protected from UV and heat, in a well-ventilated place, as required by the woven kit instructions.

A colour change may occur in the first few weeks of exposure. A slat added later may differ in colour; differences may also persist between slats or production runs. The colours and brushed finish of samples are not contractually binding. The instructions recommend ordering the entire project at once to limit batch mixing. For an additional order, provide the colour and details of the original order, without promising a perfect match.

The woven kit requires low maintenance, not zero maintenance. The instructions recommend washing once a year, ideally in spring, with a pressure washer, keeping a minimum distance of 1 m.

The slats do not require a protective treatment. Do not use solvents or apply oil, wood stain or paint. For surface stains, the instructions specify a ready-to-use product containing diluted bleach. Give the customer these care instructions together with the kit manual, rather than promising that no cleaning will be needed.

The product sheet and installation instructions for the woven composite kit state a 10-year warranty. The instructions specify that failure to follow their installation requirements voids the warranty: provide the instructions with the product and check the terms applicable to the purchase.

This period is neither a promise of service life nor automatic coverage for all damage or any change in colour. For a warranty claim, have the case assessed under the applicable terms, without promising replacement or a refund in advance.
