Description

A co-extruded composite decking board

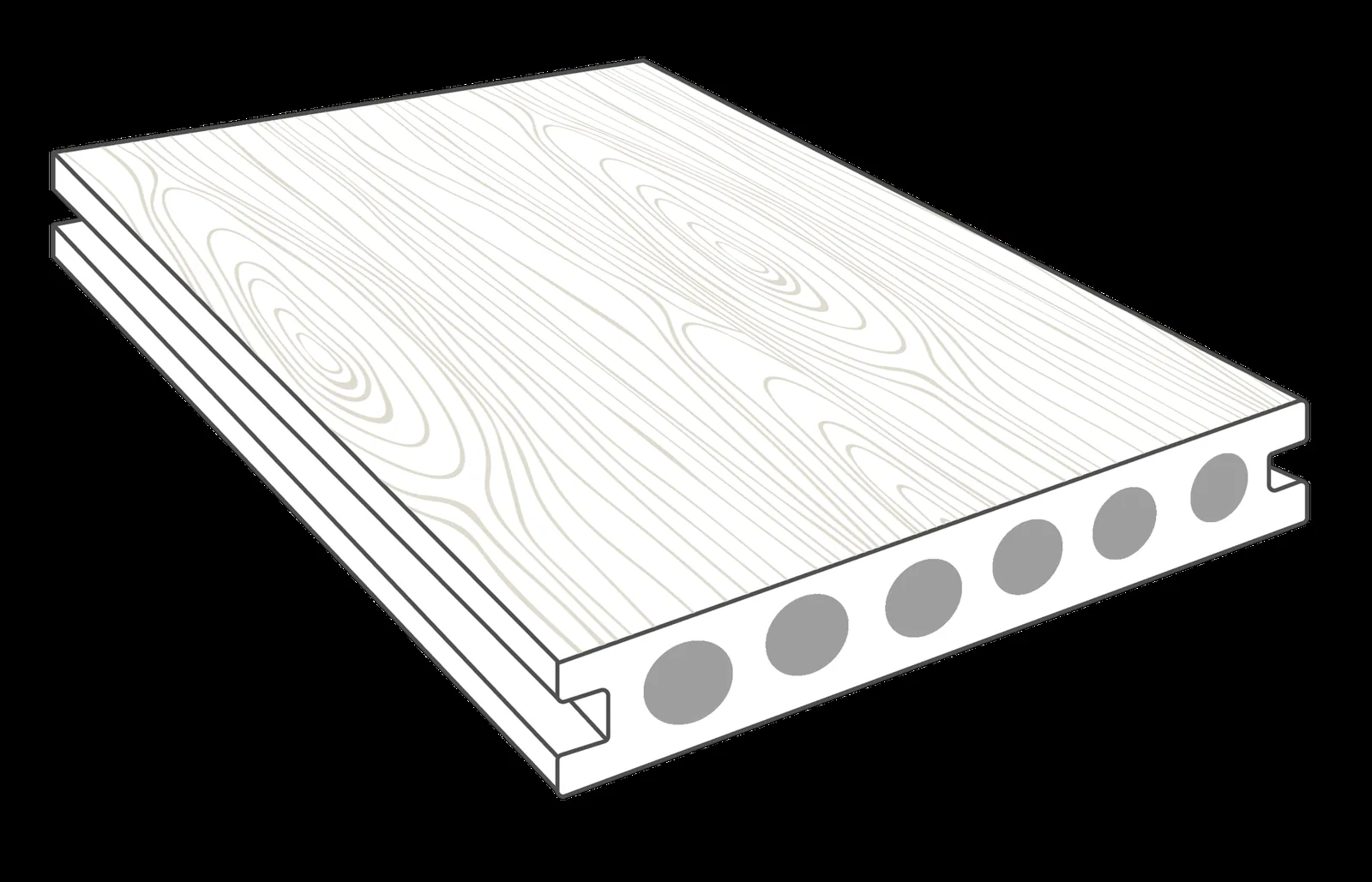

The Reverse 100 is a co-extruded wood composite decking board measuring 2 900 × 138 × 23 mm. It features an anthracite grey face and a wengé face, with a textured brushed wood appearance. The technical sheet specifies thermal expansion of 2 mm/m. Discover our full range of professional composite decking.

Two colours on a single board

The board is reversible: the front is anthracite grey and the back is wengé. The choice of face is made according to the layout selected for the project.

Pack per m² and accessories

The documented pack per m² gathers boards, joists, clips, screws and plugs. Aluminium angles and finishing skirtings are part of the system elements; check the reference and the fixings specified in the documentation before ordering.

Installation and recommendations

The installation manual is authoritative for the structure and implementation. For Reverse 100 it specifies a maximum centre-to-centre between joists of 350 mm, i.e. 310 mm between joists, support points under joists every 400 mm maximum, double joisting at end joints and a 5 mm gap at each board end. Pre-drilling is required. Store components on a dry, flat surface in a ventilated area, protected from UV and heat, and take boards out progressively during installation.

Maintenance

For maintenance and full instructions, refer to the installation manual. Do not use solvents, stain oils or paint.

A solution for professionals

Reverse 100 enables preparation of a professional project with its datasheet, manual, documented pack per m² and quote request. It differs from Reverse 200 by its 138 mm width and anthracite grey / wengé faces; Reverse 200 is 200 mm wide and offers caramel / wengé faces.

Dimensions, pack components and installation rules must be verified in the technical datasheet and the manual for the selected reference.

Key features

Board: 2 900 × 138 × 23 mm
Front anthracite grey / Back wengé
Next-generation co-extruded wood composite
Textured brushed wood appearance
Specified expansion: 2 mm/m
UV-treated, frost resistant
Documented pack per m²: boards, joists, clips, screws and plugs
Installation and storage instructions to be checked in the manual

Technical specifications

Brand
Redcinha®
Board dimensions138 x 2900 x 23 mm
Expansion2 mm/m
FinishTextured brushed wood appearance
MaintenanceConsult the manual for full instructions
Warranty10 years

Compatibilities

Associated accessories

Solid composite joist (40x25x2900 mm)
Stainless steel starter clip (each)
Black PE joining clips (200 units)
Screws (200 units)
Nylon concrete plug (each)
Starter kit Torx (15 clips + 15 screws + 5 drill bits + 3 bits)
Aluminium angle (30x48x2000 mm)
Co-extruded composite finishing skirting (10x71x2000 mm: wengé or anthracite grey)
Decking pedestals (10-20 mm / 18-36 mm / 35-60 mm / 60-115 mm / 115-220 mm)
Geotextile (roll 2x25 m: 200 or 400 g/m²)
LED spot blue or white (set of 5: 40x40 mm)
