Professional documentation

Published files and resources to request when preparing a quote, specification or installation.

Description

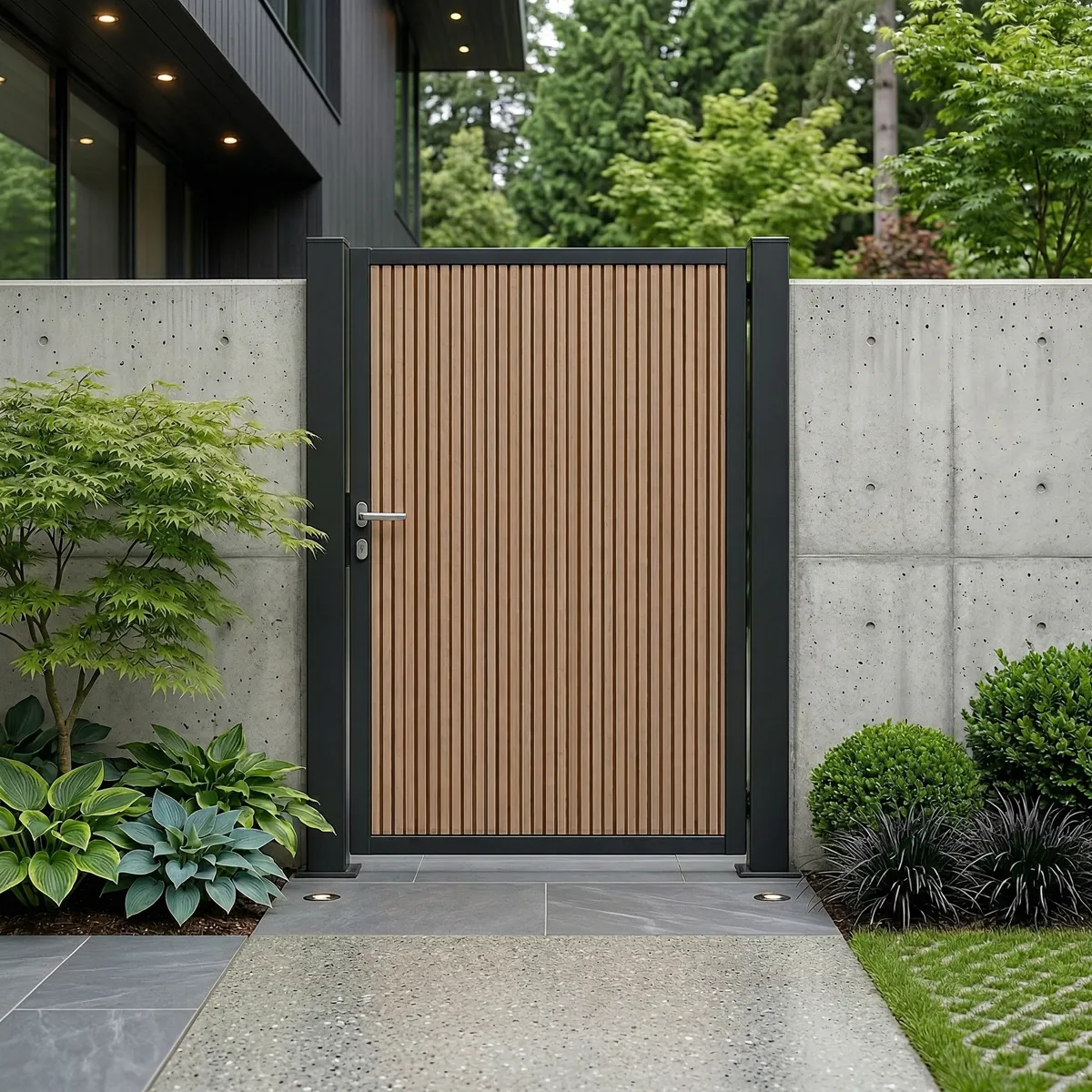

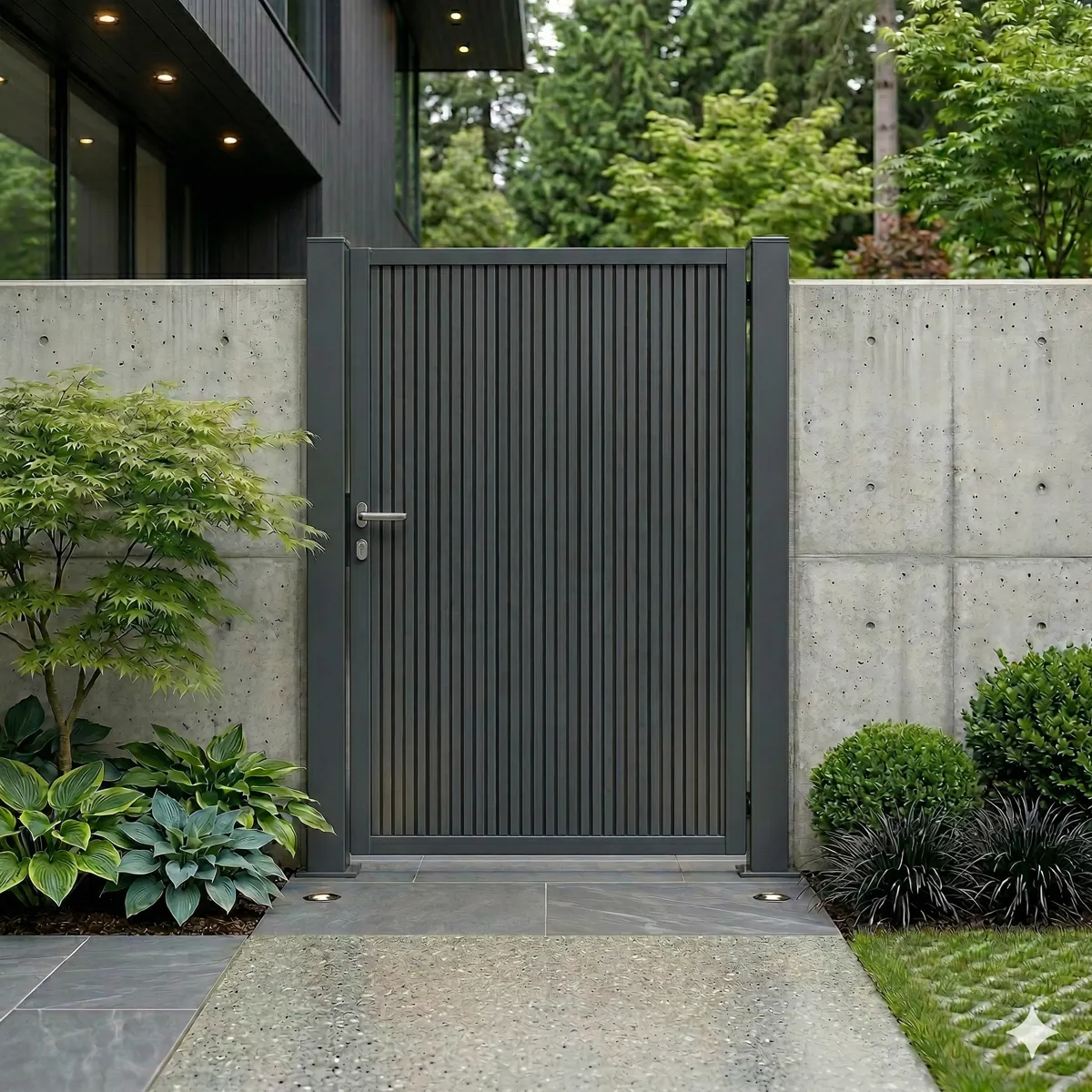

The Bardline pedestrian gate complements the Bardline fence with its open-slat appearance and vertical composite wood slats. It is available in three colours and two height configurations, with corresponding posts listed below.

Available configurations: 1m50 gate with 2m00 posts; 1m80 gate with 2m20 posts. The frame is 1030 mm wide and the clear passage is 990 mm.

Configuration and installation

Points to check before quoting and installing:

  • Two heights: 1m50 gate with 2m00 posts, or 1m80 gate with 2m20 posts.
  • Install on concrete pillars or cast-in aluminium posts; opening between supports: 1080 mm; embedment: 500 mm.
  • Bardline infill: vertical slats cut to the required height, with U profiles and self-drilling screws as specified in the guide.
  • Hinge adjustments are documented in the guide, which refers to the Locinox SFKM keep and Modulo hinge instructions.

Complete the range

For a consistent open-slat look, see the referenced Bardline fence and aluminium post.

View the Bardline fenceView the aluminium post

Key features

Open-slat appearance matching the Bardline fence
Three colours: Wengé EC 017, Anthracite grey EC 102 and light oak with black grooves EC 401B
Two height configurations with corresponding posts
Vertical composite wood slats
Identical appearance on both faces (double-sided)
Reversible opening direction

Technical specifications

Brand
Redcinha®
Gate height1m50 or 1m80
Frame width1030 mm
Frame section60 x 40 mm
Post section (optional)80 x 80 mm
Space between posts or pillars1080 mm
Clear passage990 mm
In-ground depth500 mm
Aluminium frame coloursAnthracite grey RAL 7016 or black RAL 9005

Compatibilities

Installation on concrete pillars
Installation on aluminium posts for in-ground installation

Associated accessories

Locinox lock and accessories

In the same range

Gates and pedestrian gates

Claustral Pedestrian Gate

Claustral Pedestrian Gate

  • Manufactured in France
  • Aluminium frame with co-extruded wood composite slats
  • Double-sided finish with identical faces
