Professional documentation

Published files and resources to request when preparing a quote, specification or installation.

Uses of elipsun® Garden

Uses of elipsun® Garden
Motorized gate
Outdoor LED lighting
Security camera
Pergola & veranda
E-bike & e-scooter
Robotic mower
Automatic irrigation
Connected equipment

Kit composition

ComponentColour
1 elipsun® panelRAL 9005 / RAL 7016
2 aluminium posts 2425 mm + capsRAL 9005 / RAL 7016
1 top finishing profileRAL 9005 / RAL 7016
3 post finishing profilesRAL 9005 / RAL 7016
1 bottom connection profileRAL 9005 / RAL 7016
1 composite baseLight grey EC 103
2 base/post connectors—
1 storage station—

Description

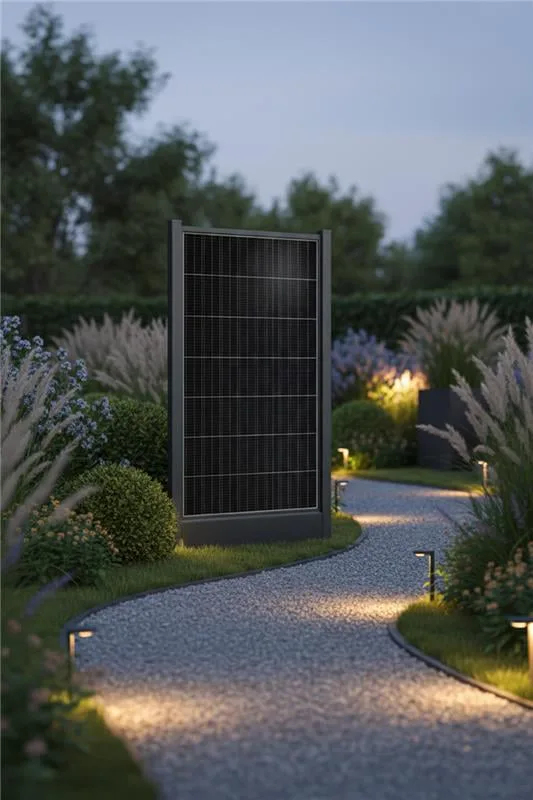

elipsun® Garden is a self-contained solar solution designed for outdoor landscaping professionals. Its documentation specifies a 220 V outlet in the garden, without connection to the household grid.

The documented kit includes a vertical module to be cast in place, a nearby technical box to install, two cables to connect to that box and an integrated safety system. The bifacial glass/glass panel is rated at 390 Wc under STC conditions; this laboratory value does not guarantee the energy production on a real site. Intended uses and installation conditions must be validated against the technical documentation.

Our team's advice

Uses indicated in the technical sheet are for information only and are limited to 1000 W. Verify the equipment, its connection and the installation conditions before any project.

Key features

Self-contained solution, no connection to the household grid
Bifacial panel with monocrystalline cells, glass/glass construction
220 / 230 V outlet in the garden for uses indicated in the technical sheet
Indicative uses: motorized gate, outdoor lighting, irrigation and battery-powered equipment
Vertical module to be cast in place and technical box to install nearby
Two cables to be connected to the technical box
Integrated safety system
15-year warranty, French design
Offer reserved for professionals, manufactured to order

Technical specifications

Brand
elipsun®
TechnologyBifacial monocrystalline cells (glass/glass module)
Rated panel power390 Wc (STC conditions)
Panel efficiency19.8 % (STC conditions)
Panel dimensions1752 x 1163 x 20 mm
Panel weight37.5 kg
Documented output220 / 230 V outlet in the garden
Usage limit1000 W maximum for indicative uses
StorageLiFePO₄ battery 1,92 kWh, expandable up to 11,52 kWh
ProtectionsJunction box IP68, storage station IP65
Panel operating temperature-40 °C to +85 °C
Panel resistanceWind load 2400 Pa, snow load 5400 Pa (ref. NF P01-013)
InstallationVertical module to be cast in place + technical box
Connection2 cables (no connection to the household grid)
Indicative usesMotorized gate, outdoor lighting, irrigation, battery-powered equipment
Warranty15 years
OriginFrench design
CommercialisationReserved for professionals: manufactured to order
